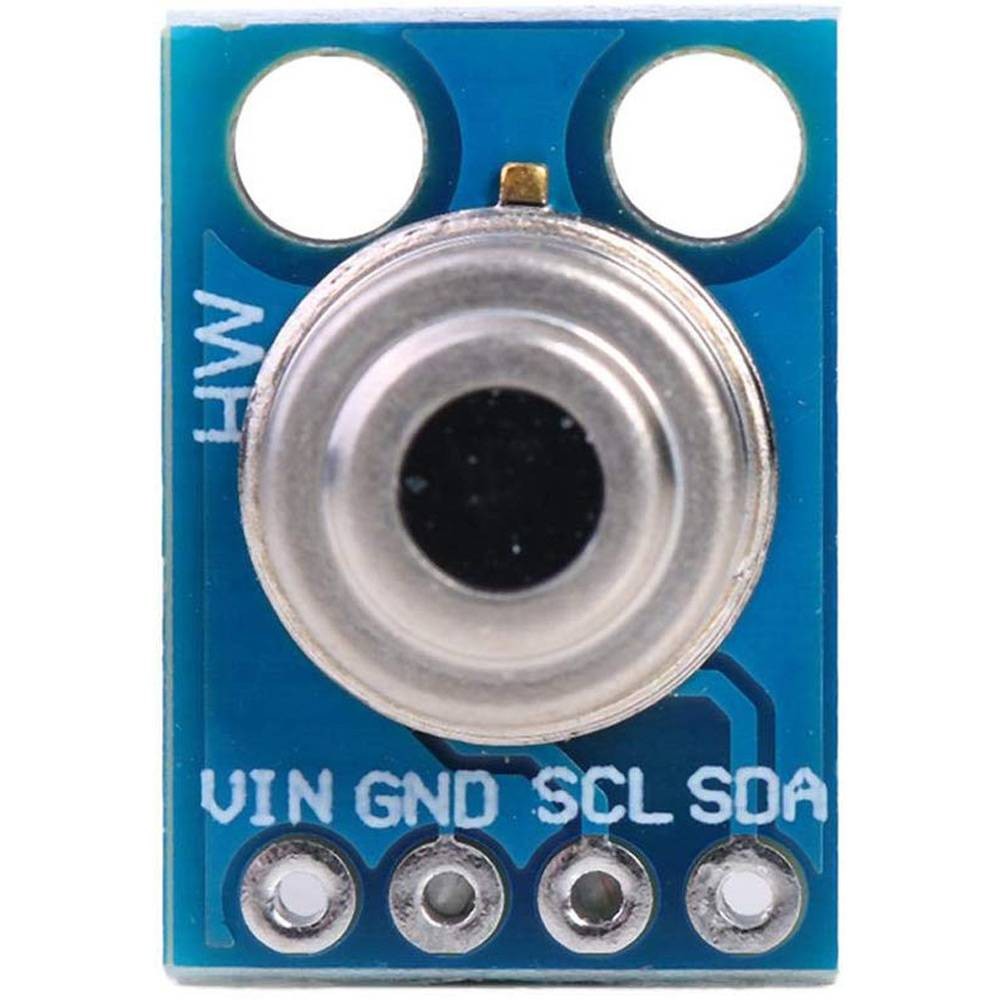

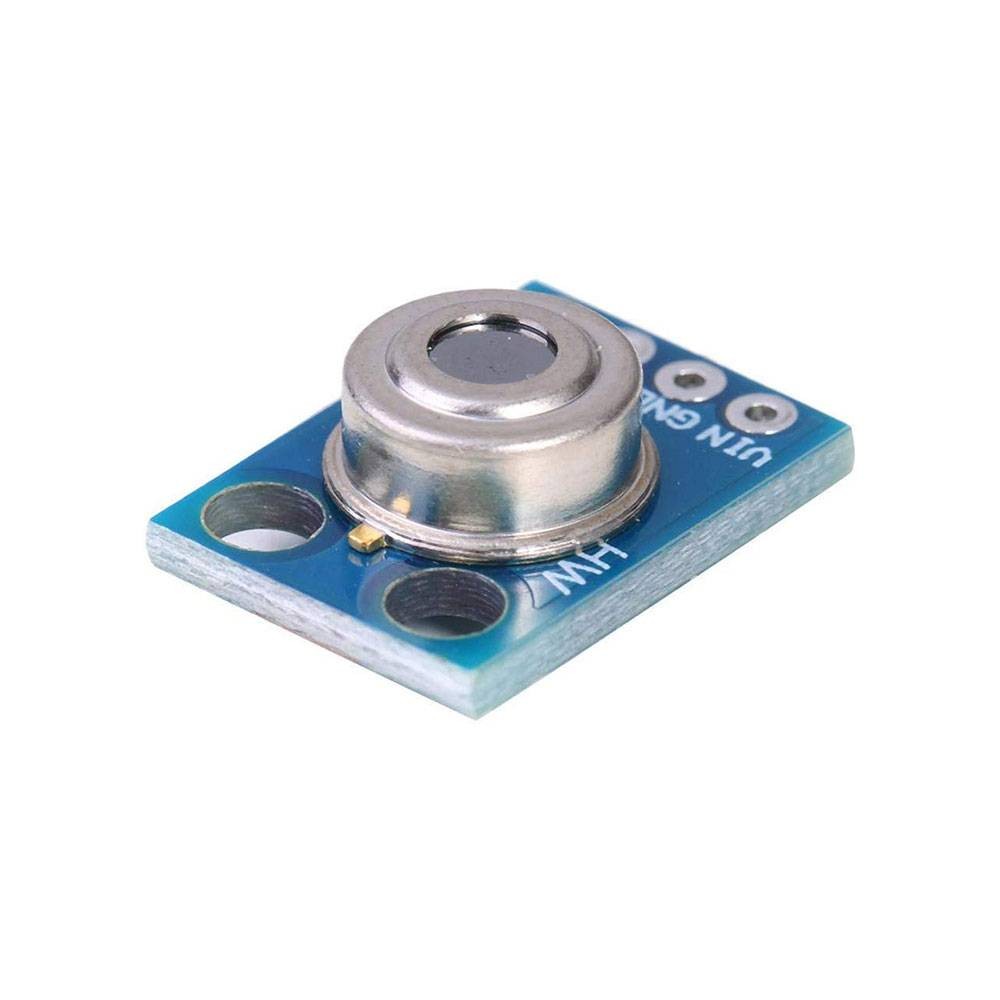

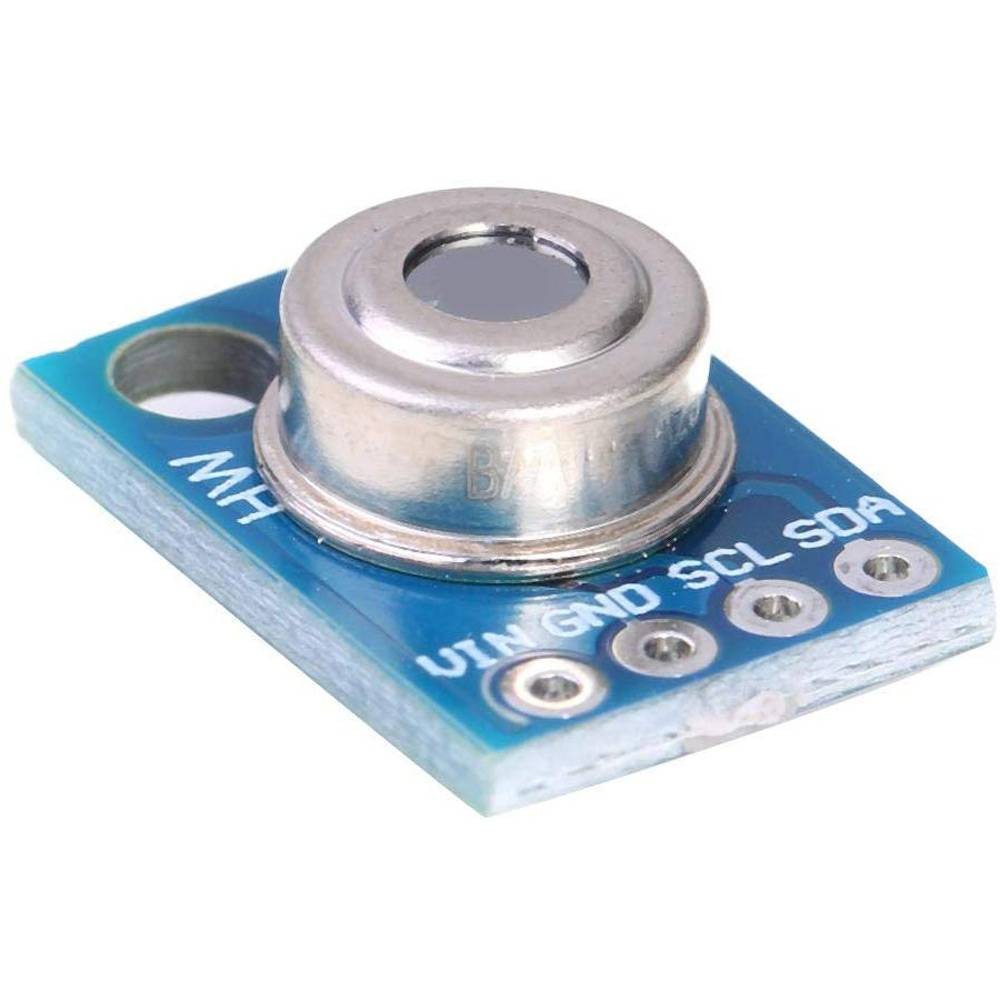

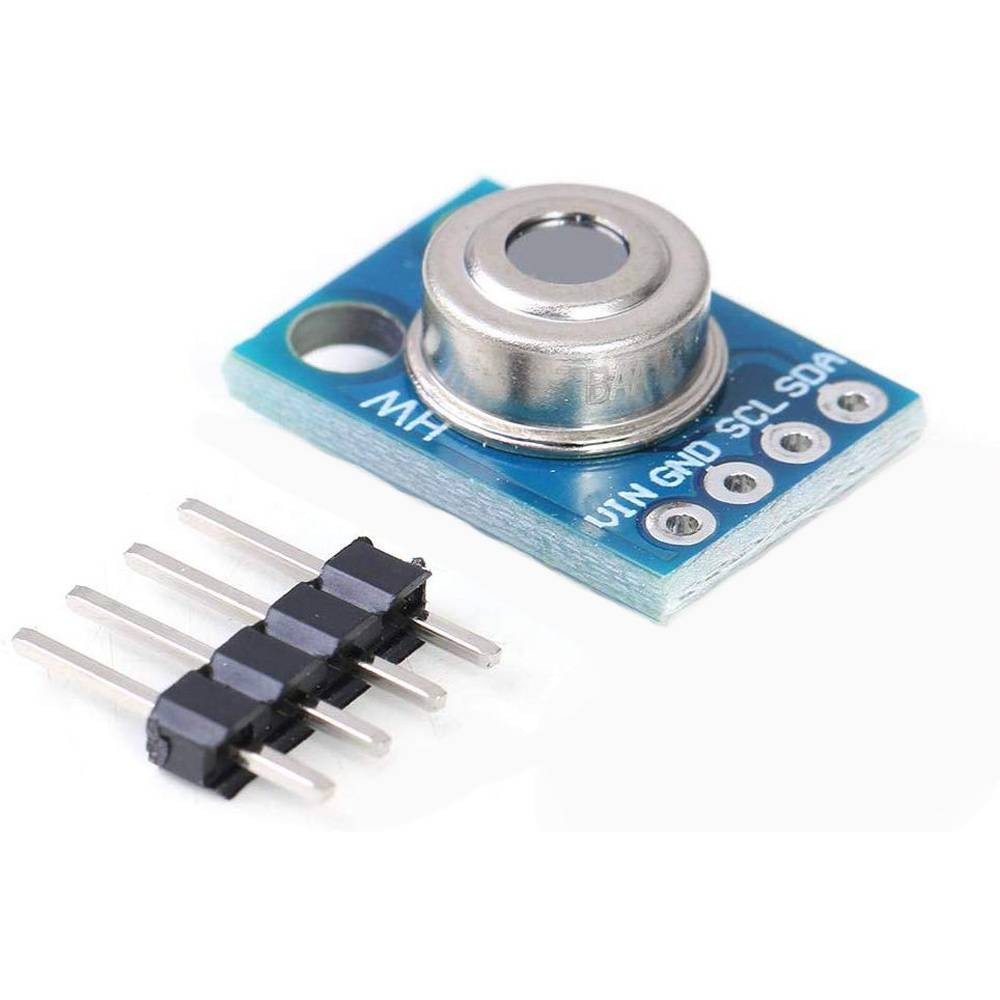

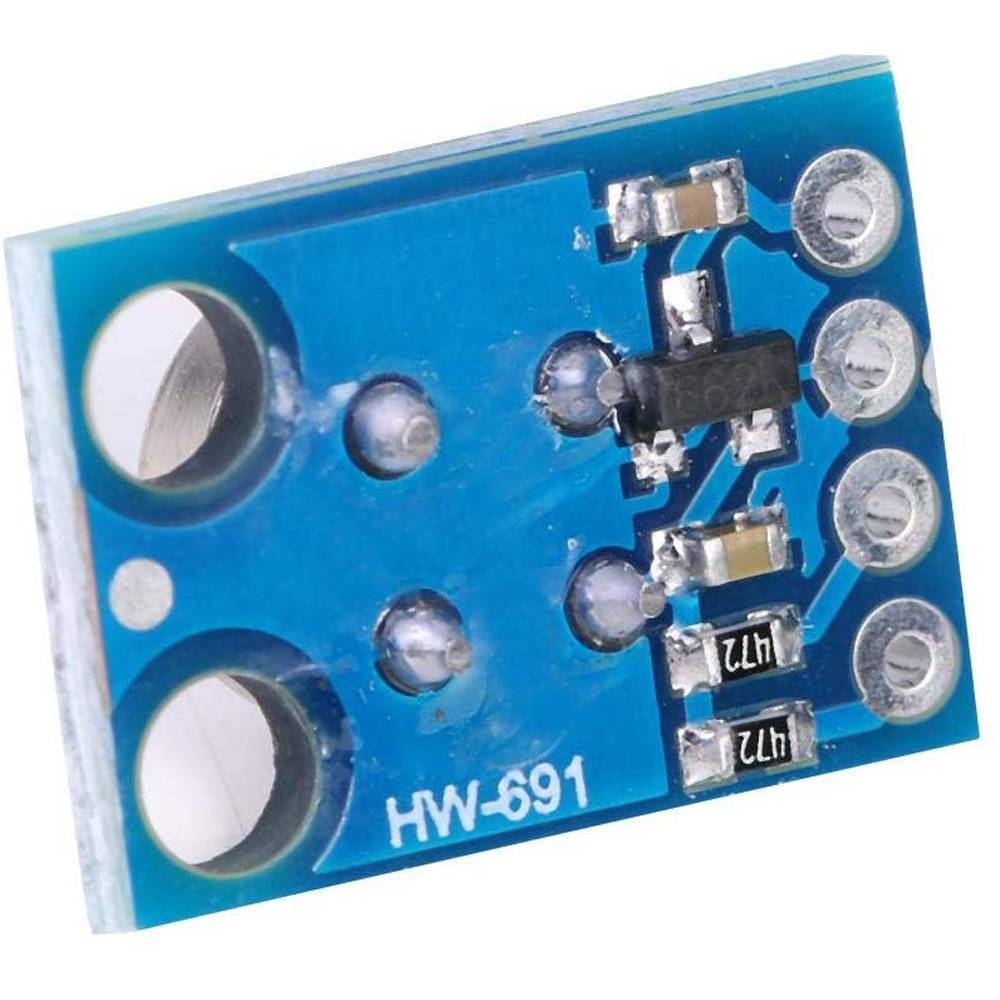

MLX90614 Contactless Temperature Sensor Module GY-906

LKR 2,850.00
In Stock
Order on WhatsApp
In Stock
Add to wishlist
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs, sent by blonwe.com
  • Pick up at a blonwe.com collection point is possible
  • 7 days to change your mind and free returns
  • Day and night customer service
SKU: RB125
Category:

Description

MLX90614 is an infrared thermometer for non-contact temperature measurements.
Both the IR sensitive thermopile detector chip and the signal conditioning ASIC are integrated in the same TO-39 can. Integrated into the MLX90614 are a low noise amplifier, 17-bit ADC and powerful DSP unit thus achieving high accuracy and resolution of the thermometer. The thermometer comes factory calibrated with a digital SMBus output giving full access to the measured temperature in the complete temperature range(s) with a resolution of 0.02°C.
The user can configure the digital output to be pulse width modulation (PWM). As a standard, the 10-bit PWM is configured to continuously transmit the measured temperature in range of -20 to 120°C, with an output resolution of 0.14°C.

  • Power supply: 3-5v (internal low dropout voltage regulation)
  • Communication method: standard IIC communication protocol
  • PCB material: high quality immersion gold
  • Size: 11.5*16.5mm (1mm=0.0393inch)
  • Weight: 2g
  • Measurement resolution of 0.02°C
  • Single and dual zone versions
  • SMBus compatible digital interface
  • Customizable PWM output for continuousreading
  • Simple adaptation for 8…16V applications
  • Sleep mode for reduced power consumption
  • Different package options for applications andmeasurements versatility
  • Automotive grade

Applications Examples:

  • High precision non-contact temperaturemeasurements
  • Thermal Comfort sensor for Mobile AirConditioning control system
  • Temperature sensing element for residential,commercial and industrial building airconditioning Windshield defogging
  • Automotive blind angle detection
  • Industrial temperature control of moving parts
  • Temperature control in printers and copiers
  • Home appliances with temperature control
  • Healthcare
  • Livestock monitoring
  • Movement detection
  • Multiple zone temperature control – up to 127sensors can be read via common 2 wires
  • Thermal relay / alert
  • Body temperature measurement
