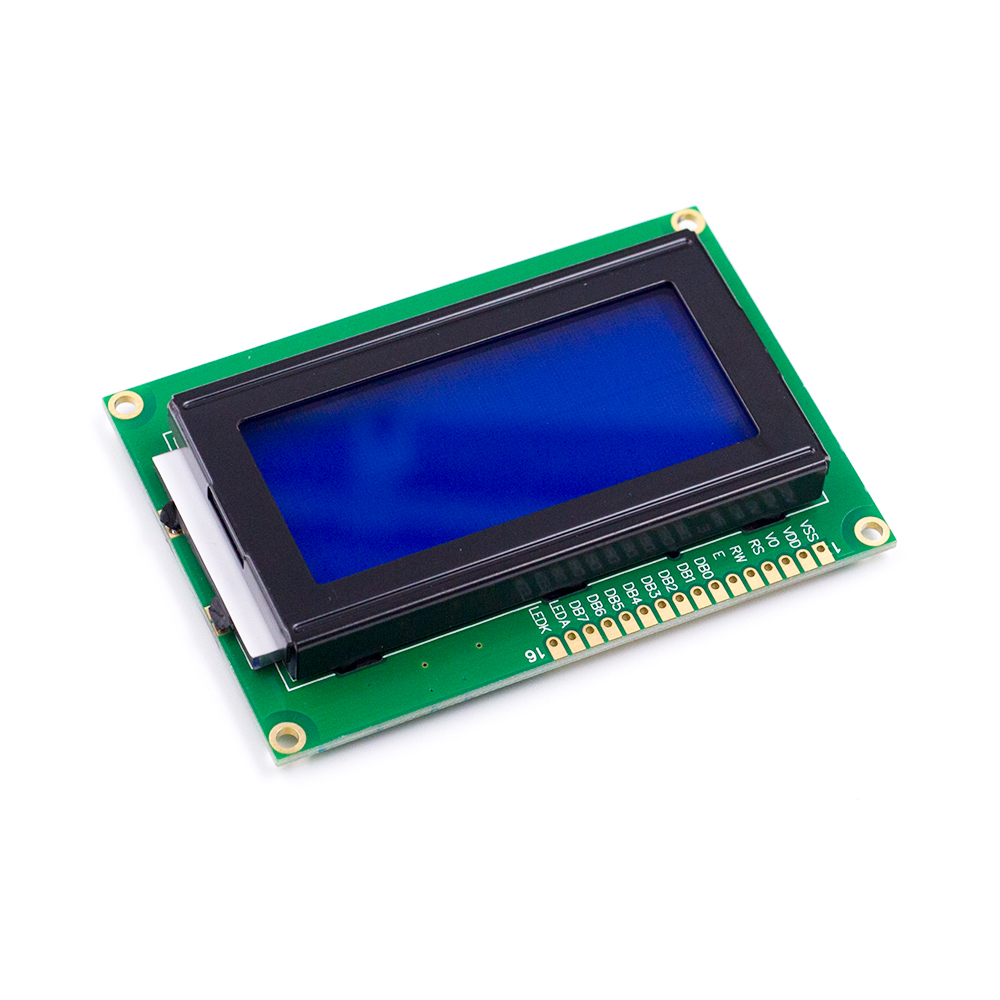

1604 16×4 Blue Backlight LCD Display

LKR 1,320.00
In Stock

This product has been added to 16 people'scarts.

Order on WhatsApp
In Stock
Add to wishlist
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs, sent by blonwe.com
  • Pick up at a blonwe.com collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service
SKU: RB172
Categories: ,

Description

This display is 16 characters wide,4 rows character lcd module,SPLC780C controller (Industry-standard HD44780 compatible controller),6800 4/8-bit parallel interface,single led backlight with white color included can be dimmed easily with a resistor or PWM,stn- blue lcd negative,white text on the blue color,wide operating temperature range,rohs compliant,built in character set supports English/Japanese text, see the SPLC780C datasheet for the full character set. It’s optional for pin header connection,5V or 3.3V power supply and I2C adapter board for arduino.

It’s easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held equipment.

  • Display Format: 16x4 Character
  • Interface: 6800 4-bit Parallel , 6800 8-bit Parallel
  • IC or Equivalent: AIP31066 , HD44780, KS0066 , SPLC780 , ST7066
  • Appearance: White on Blue
  • Connection: Pin Header
  • Outline Dimension: 87.0(W)x60.0(H)x12.9(T)mm
  • Visual Area: 62.00x27.20mm
  • Active Area: 56.21x20.81mm
  • Dot (Pixel) Size: 0.56x0.56mm
  • Dot (Pixel) Pitch: 0.60x0.60mm
  • IC Package: COB
  • Display Type: STN-LCD Blue
  • Viewing Direction: 6:00
  • Backlight Color: White Color
  • Backlight Current (Typ): 45mA
  • Power Supply(Typ): 3.3V, 5V
  • Supply Current for LCM(Max): 1500uA
  • Operating Temperature: -20℃~70℃
  • Storage Temperature: -30℃~80℃
