12VDC 4 Way 4 Channel RF Relay Module with Remote Controller 10A 433MHz
LKR 2,200.00
In Stock
This product has been added to 30 people'scarts.
In Stock
- Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
- Including shipping costs, sent by blonwe.com
- Pick up at a blonwe.com collection point is possible
- 7 days to change your mind and free returns
- Day and night customer service
Description

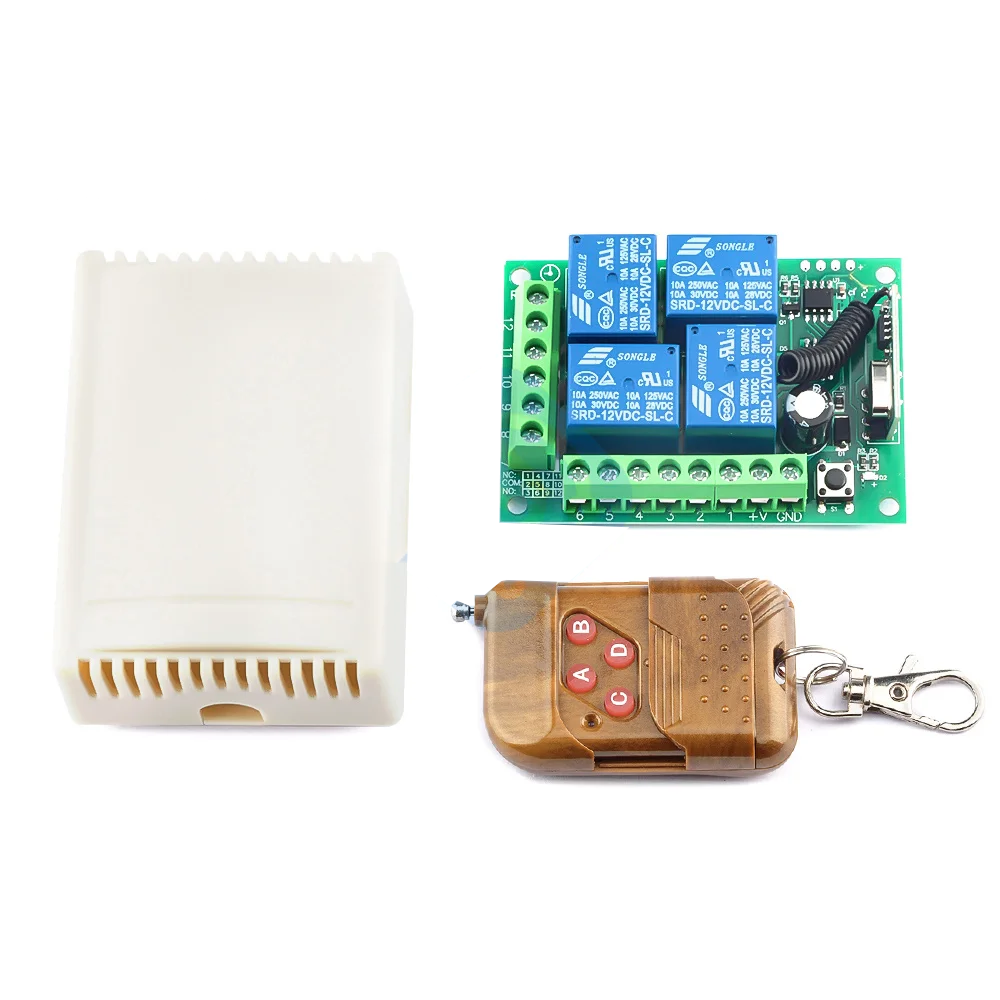

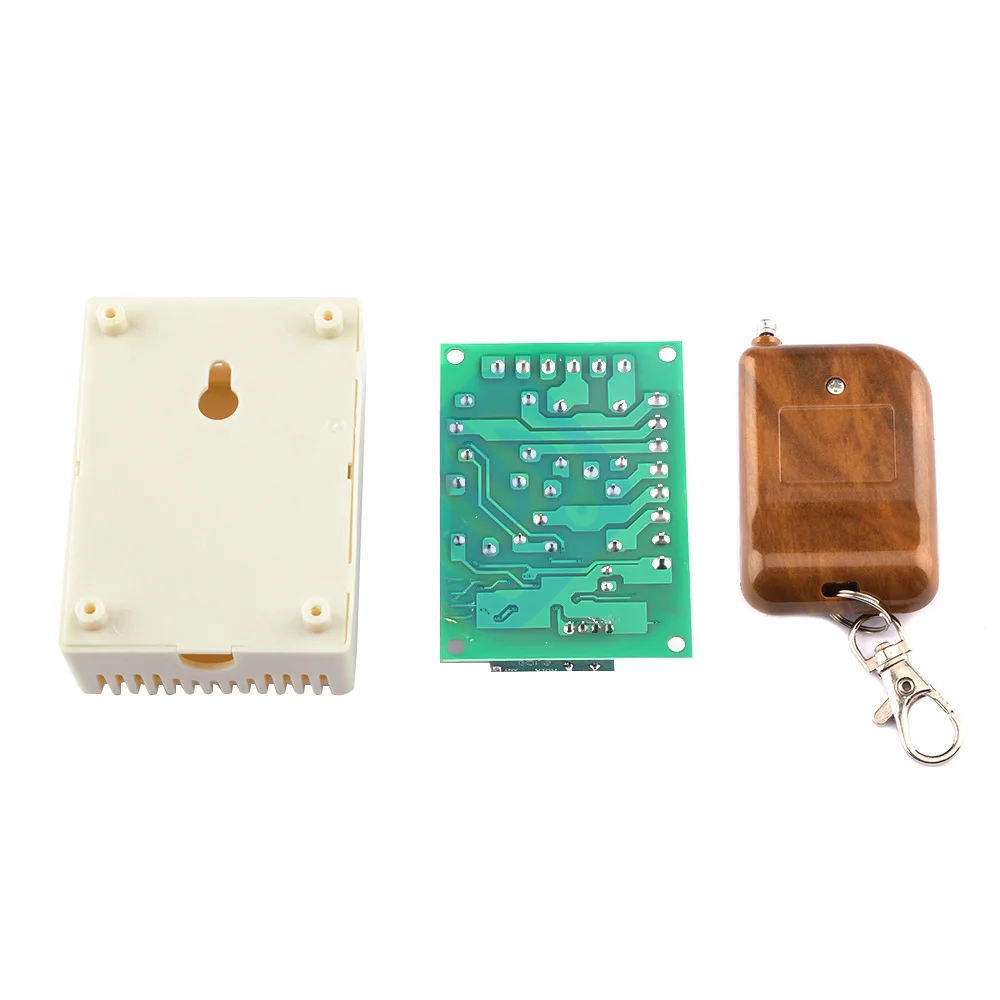

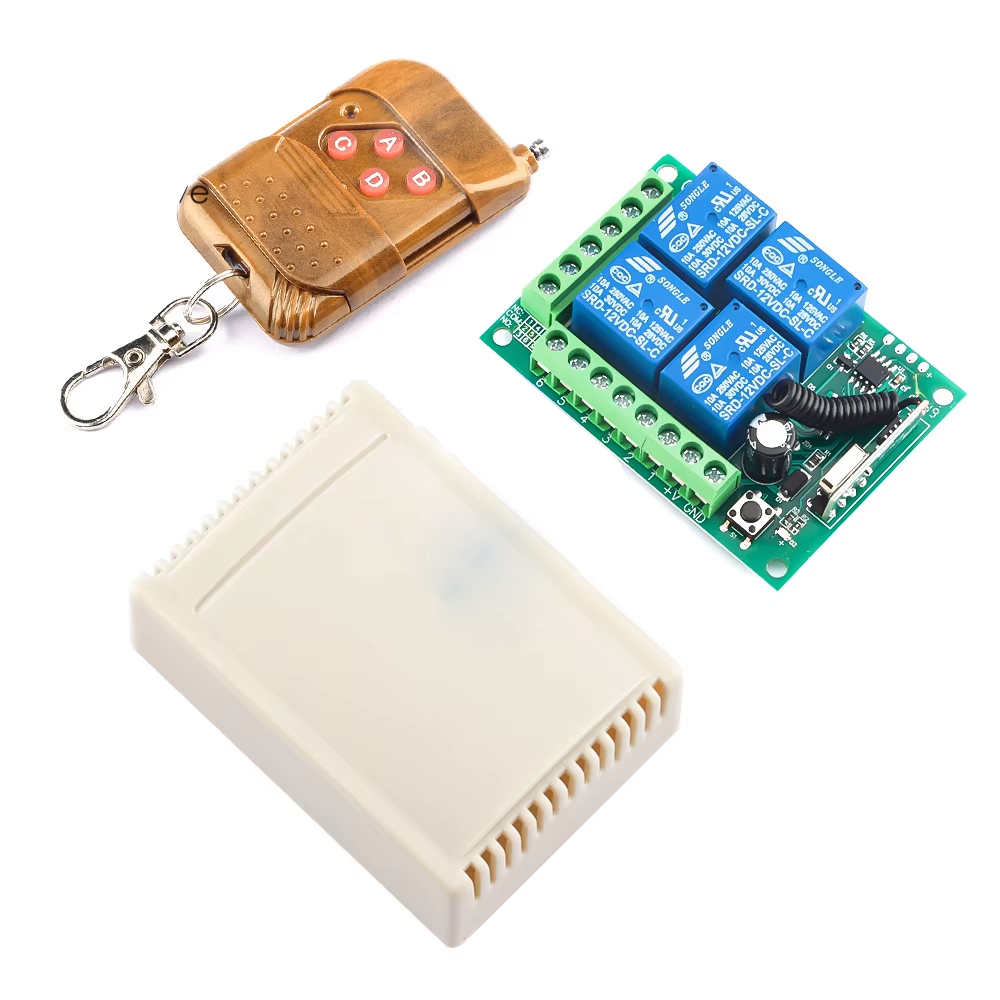

315MHz Universal Wireless Remote Control Switch is a 4-channel relay receiver module operating on DC 12V with low power consumption (5mA). It supports jog, self-locking, and interlocking modes, ideal for remote control applications such as gate and garage door openers.
- Input Voltage: DC 12V
- Receiving Frequency: 433MHz / 315MHz
- Receiving Sensitivity: -108dBm
- Quiescent Current: 5mA
- Relay Configuration: 4CH (4 relays with normally open and normally closed terminals)
- Relay Connections:
- KC1, KC2, KC3, KC4 with Normally Open (NO), Normally Closed (NC), and Common terminals
Operating Modes:
- Jog Function: Single press for momentary activation.
- Self-locking Function: Allows toggling with a single press.
- Interlock Function: Activates one relay at a time, locking the others.
- Mixed Modes: Supports combinations of jog, self-locking, and interlocking for flexible operation.
Code Clearing Function:
The module allows easy code clearing, which removes all paired remote control keys, making it easy to reprogram or reset.
Applications:
- Garage Door Openers
- Gate Openers
- Home Automation Systems
- Remote Control for Lighting and Appliances
- Security Systems
Precautions:
- Power Off for Configuration: Ensure the module is powered off before pairing or clearing codes.
- Battery Management: Replace remote control batteries when the operating distance decreases due to low voltage.
- Avoid Interference: Minimize the use near metal objects, electromagnetic fields, and other strong interference sources.
